Product Specifications

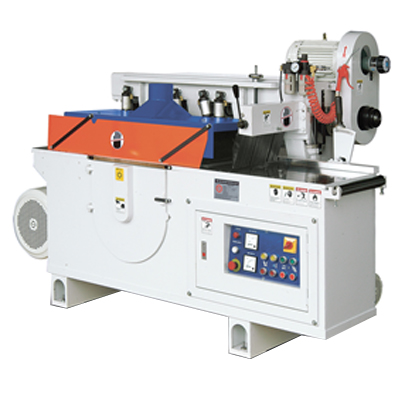

Gang Rip Saw, Multiple Rip Saw Machine
| Model | GSG-320 |
|---|---|
| Circular saw dia. | 255mm~405mm |
| Max. workpiece thickness | 122mm |
| Max. circular saw inner & outer range | 320mm |
| Circular saw spindle dia. | 60mm +12x5 Twin diagonal square key |
| Circular saw revolution speed | 4000rpm |
| Number of feeding roller | Upper feeding roller 4pcs, lower feeding roller 2pcs |
| Feeding speed | 3-18m/min Adopts vari-pole motor and coupled with stepless varible speed |
| Circular saw power | 30HP / 50HP(option) |
| Circular saw elevating power | 1/2HP |
| Feeding power | 3HP (4P/8P) |
| Roller elevating power | 1/2HP |
| Net weight | 1,400kgs |
| Gross weight: | 1,600kgs |
| Packing dimensions | 2060 x 1030 x 1530mm |
**Design and specifications are subject to change without prior notice.
