Product Specifications

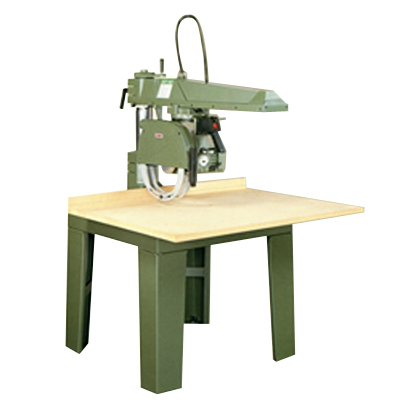

| Model | GSG-420R |
|---|---|
| Motor | 4HP 3ph |
| Speed | 3450/2875rpm (60/50 Hz) |
| Bearing for rail | 8pcs |
| Spindle dia. | 25.4mm |
| Blade dia. | 355mm or 305mm |
| Head swiveling | 0°-180° |
| Head tilting | 0°-90° |
| Table area | 1120 x 860mm |
| Net weight | 350kgs |
| Gross weight: | 410kgs |
| Packing dimensions | 900 x 870 x 1370mm |
**Design and specifications are subject to change without prior notice.
