Product Specifications

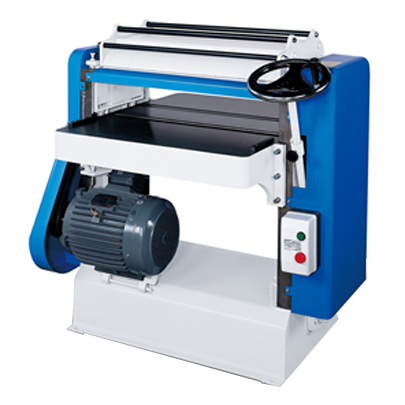

| Model | GSG-20 |
|---|---|
| Table area | 546 x 699mm |
| Max. planing width | 508mm |
| Max. planing thickness | 178mm |
| Min. planing thickness | 3mm |
| Max. cutting depth | 6.4mm |
| Knives - Straight cutterhead | 3pcs |
| Knives - Helical cutterhead | 6Slots / 132pcs |
| Knife size - Straight cutterhead | 510 x 30 x 3mm |
| Knife size - Helical cutterhead | 14*14*2.0mm |
| Cutterhead speed | 5200rpm |
| Cutterhead diameter | 80mm |
| Feed Speed | 8 M/min |
| Cutterhead motor | 3HP |
| Net weight | 330kgs |
| Gross weight: | 400kgs |
| Packing dimensions | 930 x 760 x 1170mm |
**Design and specifications are subject to change without prior notice.
