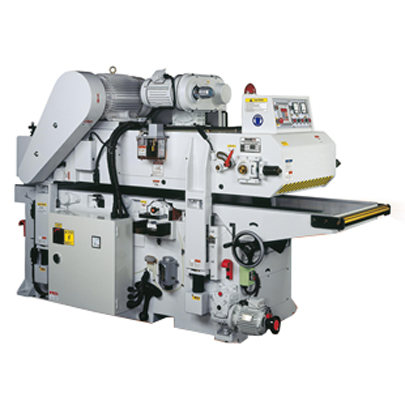

Double Surface Planer GSG-400B

Product Specifications

Double Surface Planer

Model	GSG-400B
Max. width of cut	405mm
Max. thickness of cut	170mm
Mix. thickness of cut	8mm
Mix. length of cut	250mm
Knife size	405 x 30 x 3mm
Cutterhead dia.	101mm
Cutterhead speed	4000rpm
Variable feed speed	7-20 M/min
Dust hood outlet dia.	5"
Table surface area	19" x 86"
Top cutterhead drive motor	10HP
Bottom cutterhead drive motor	7.5HP
Feed drive motor	2HP

**Design and specifications are subject to change without prior notice.
